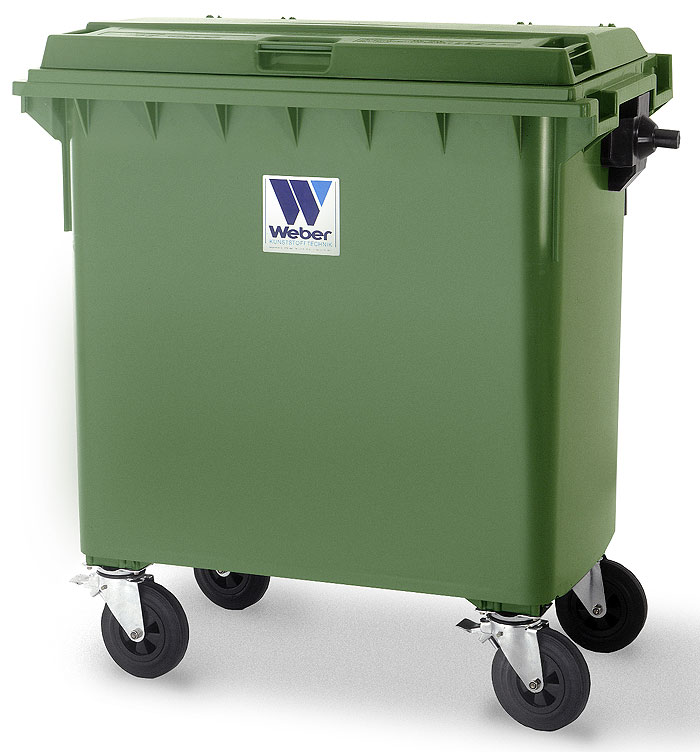

| 4-wheel containers |
770 l |
|
| Capacity (l) |
770
|
| Nominal weight (kg) |
310 |
| Container Weight (kg) |
47 |

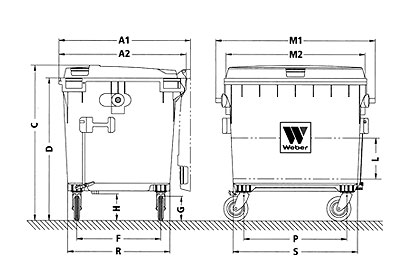

| A1 Total depth, cover open (mm) |
784 |
| A2 Total depth of the container with hinges (mm) |
770 |
| B Overall depth of the container (mm) |
|
| C Overall height of the container (mm) |
1355 |
| D Height of the container without a lid (mm) |
1275 |
| F Chasis width (mm) |
481 |
| GWheel diameter Ø (mm) |
200 |
| H Distance from the ground (mm) |
191 |
| M1 Width with lifting bearings (mm) |
1370 |
| M2 Cover width (mm) |
1128 |
| M3 Width of the container (mm) |
|
| M4 Width of the bearing of cover mm |
|
| L Distance for lifting devices (mm ) |
350 |
| P Distance supports of the wheel (mm) |
880 |
| R Base depth (mm) |
608 |
| S Base width (mm) |
1057 |
